Overview
Nam Phak I, II & III Hydropower Projects

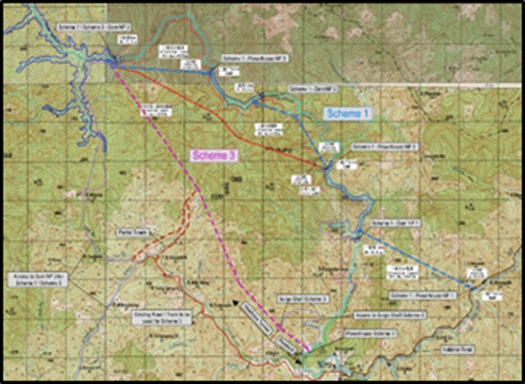

ILF carried out a technical due diligence and optimized the existing design resulting in a financial return by avoiding the cascade scheme. On this basis, ILF recommended a one-step scheme using the upstream location of the HPP dam and the inlet, followed by a 20 km waterway to the down-stream powerhouse. In this way, the investment was reduced by two thirds compared to the cascade model and the 15 % loss in power generation was compensated.
Energy & Climate Protection
About the Project
- Client:
- Confidential
- Location:
- Lao PDR
- Time frame:
- 2015 - 2017
Technical Data
- Installed Capacity: 30 MW, 26 MW and 40 MW
- Design Flow: 39.7 m3/s, 39.1 m3/s and 37.4 m3/s
- Headworks Nam Phak I: Concrete gravity dam (height 51.8 m, crest length 128 m)
- Headworks Nam Phak II: Concrete gravity dam (height 30.1 m crest length 81 m)
Headworks Nam Phak III: Concrete gravity dam (height: 51.8 m, crest length: 128 m)
ILF-Services
- Engineering
- Project Management
